Description :
?Intel Alder Lake-N series processors;
?1 x DDR5 SO-DIMM, maximum 16GB;
?4 x 2.5G LAN, HDMI + DP + Type-C;
?M-Key 2280, Mini PCIe
?Power supply: DC12V
?Size: 123x220x80 mm
|
Processor System |
Intel Alder Lake-N series processors |
|
|
EFI BIOS |
|
Memory |
1 x DDR5 SO-DIMM, max 16GB |
|
Storage |
1 x M.2 M-Key 2280 (PCIe_x 2 protocol) |
|
Display |
1 x HDMI2.0 interface, support 4K@60Hz |
|
|
1 x DP1.4 interface, support 8K@60Hz |
|
|
1 x Type-C interface, support 8K@60Hz |
|

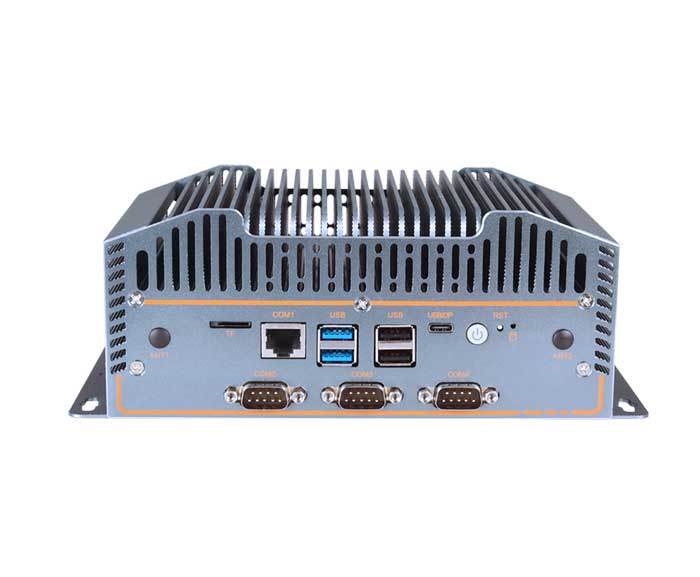

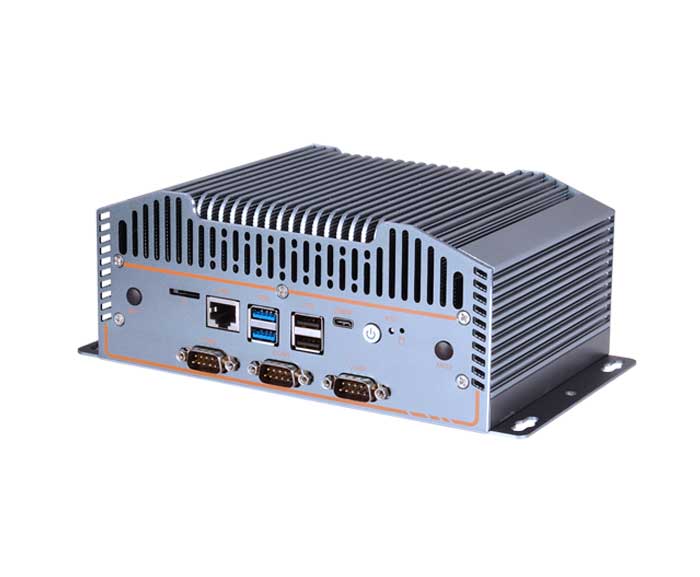

Front Panel Interface |
4 x USB; 3 x DB9 COM |
|
|
CONSOLE; Type-C; 2 x ANT |
|
|
PWR SW; RST; HDD LED |
|

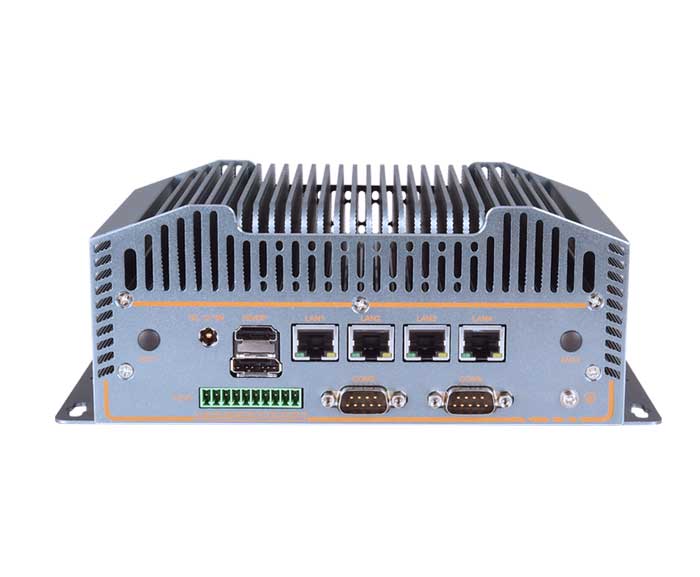

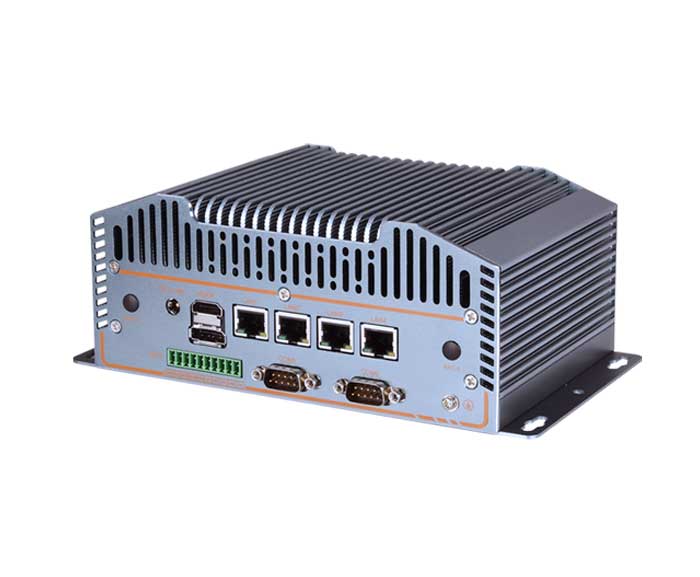

Rear Panel Connectors |
4 x LAN (3 x Intel i226-V, 1 x RTL8156B, optional POE 48V/15W) |
|
|
HDMI, DP, DC JACK |
|
|
2 x DB9 COM; 8-Bit GPIO; 2 x ANT |
|
Extended Functionality |
Mini PCIe (WIFI/BT/4G/mSATA) |
|
Power Supply |
DC12V |
|
Work Environment |
Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90% |
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90% |
|
Operating System |
Windows 10, Windows 11, Linux |
|
Host Size |
123 x 220 x 80 mm |
|
Single Packing Size |
26 x 16 x 19.5 cm |
|
Gross Weight |
About 2.5Kg |
