SU200NA4L

Model : SU200NA4L

Description :
◆ Integrated Intel 7th Mobile Skylake-U single chipset CPU；
◆ 2 *DDR4 SODIMM 260 Socket；
◆ 4*Intel I211AT or Intel I210 Gigabit lan Port (optional）；
◆ 1*RJ45 interface RS232 or RS485 (485 is the pin header, RS232 or RS485 is selected by jump cap and BIOS);
◆ Support power-on automatic power-on function, jumper selection;
◆ Single input DC power supply, DC12-19V power supply;
◆ size: 120 x 120 mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Integrated Intel 7^th Mobile Skylake-U single chipset CPU；

◆ 2 *DDR4 SODIMM 260 Socket；

◆ 4*Intel I211AT or Intel I210 Gigabit lan Port (optional）；

◆ 1*RJ45 interface RS232 or RS485 (485 is the pin header, RS232 or RS485 is selected by jump cap and BIOS)

◆ Support power-on automatic power-on function, jumper selection;

◆ Single input DC power supply, DC12-19V power supply

◆ size: 120 x 120 mm；

Specifications

? Processor	CPU	Intel? Core??7^th??Kaby lake-U?3865u?/i3/i5/i7?Processor
	CPU?package	BGA
	Intel chipset	Intel ?Kaby lake-U??serial SOC
	BIOS	EFI BIOS
Memory	Technology Architecture	Dual channel DDR4?2133Mhz；
Memory	socket	2?*DDR4?SODIMM 260?Socket
? Video	? Graphics controller	Intel HD Graphics 520 (I3-6100U graphics card); graphics card model is related to the CPU
? Video	HDMI	Maximum resolution support (HDMI1.4) 4096*2304@30HZ Support 4K display

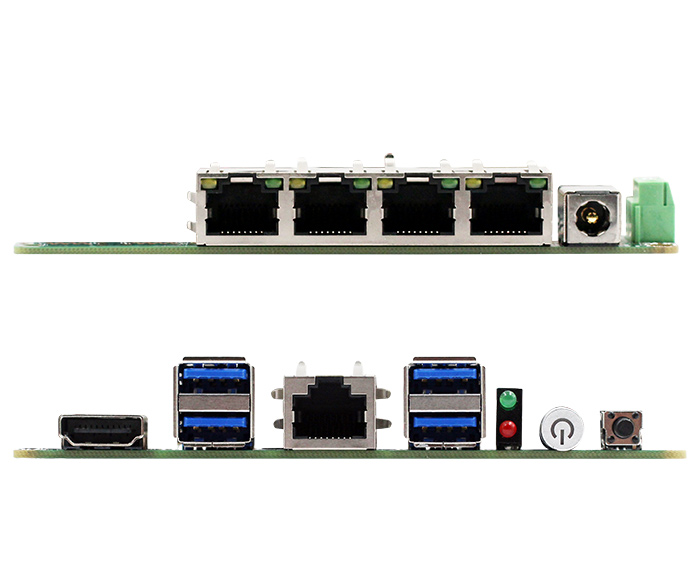

I/O?backpanel	Ports	1HDMI, 4LAN, 4USB3.0 1 quick start button with indicator light 1* reset button 1DC 1 power indicator 1* hard disk indicator
Internet	controller	4*Intel I211AT?or Intel I210?Gigabit lan Port (optional）
Super ?I/O	controller	ITE8613
Hardware monitoring ?	Watch-dog timer	0-255 seconds, providing a watchdog routine
Hardware monitoring ?	Cooler	Aluminum fan heater (supports automatic and manual fan speed adjustment)
? Input/output interface ?	USB	4USB3.0 compatible with USB2.0 / 1.1, 2USB2.0, maximum support +5V/1.5A (USB2.0 is the pin header interface）
	Com	1*RJ45 interface RS232 or RS485 (485 is the pin header, RS232 or RS485 is selected by jump cap and BIOS)
	GPIO	8-bit, providing routines, freely defined input/output, 3.3V@24mA level
?	Mini-PCle	1 Mini-PCIe slot for PCIE signal and USB signal devices
Expansion bus storage	SATA	1 standard SATAIII interface with a maximum transfer rate of 6Gb/s
Expansion bus storage	M-SATA	1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s (optional M-SATA and SATA1 interfaces)
power supply ?	Power type	DC 12-19V Power supply
? working environment ?	Operating temperature	-20℃ ~ +60℃
	storage temperature	-40℃ ~ +85℃
	Working humidity	0% ~ 90% relative humidity, no condensation
	Storage humidity	0% ~ 90% relative humidity, no condensation
physical dimension ?	size	120?x 120?mm
physical dimension ?	weight	0.5KG
Certifications	?	CE,RoHS,FCC

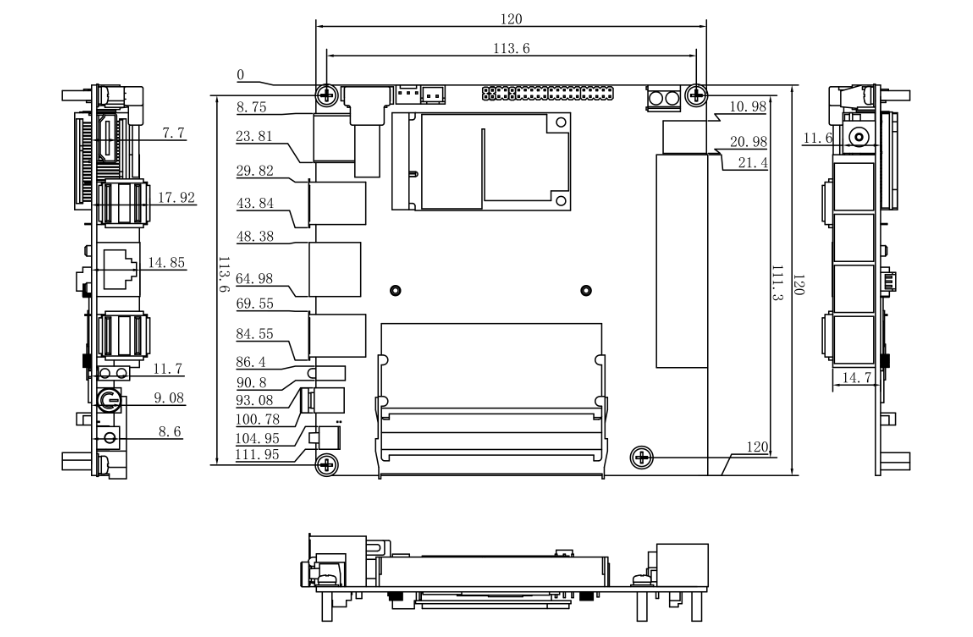

Size

Order information

Model

description

CPU?optional

?

SU100NA4L-I3

Integrated Intel 7^th?Mobile Kably lake

?

I3-7100U

Max Main frequency2.4GHz

?

SU100NA4L-I5

Integrated Intel 7^th?Mobile Kably lake

?

I5-7200U

Basic Main frequency?2.5GHz，Max Turbo?3.1GHz

?

SU100NA4L-I7

Integrated Intel 7^th?Mobile Kably lake

?

I7-7500U

Basic Main frequency?2.7GHz，Max Turbo?3.5GHz

?

SU100NA4L-Celeron

Integrated Intel 7^th?Mobile Kably lake

?

3865U

Max Main frequency?1.8GHz
